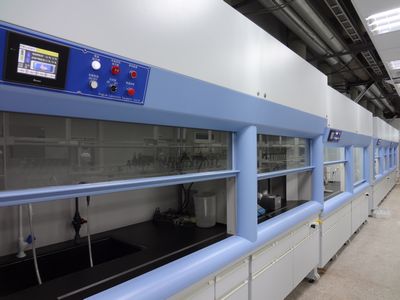

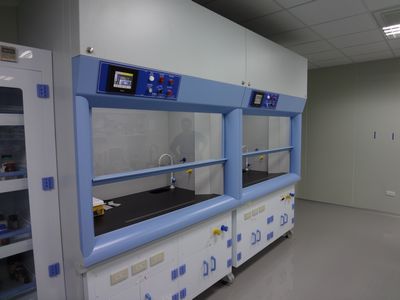

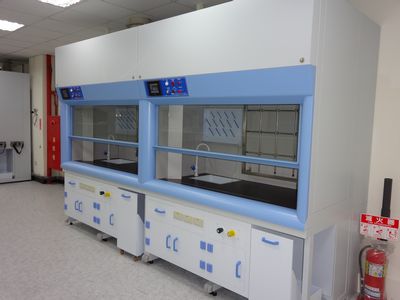

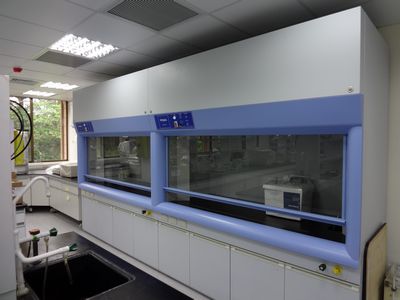

IAC (Inclined Air-curtain) Fume Hood

A new generation inclined air-curtain (IAC) technology that uses the principle of push-pull airflow to stop pollution, in order to achieve the objectives of safety and energy conservation. It has the following characteristics:





Save Energy

Experiments confirm that compared to traditional fume hoods, it can save more than 30% of exhaust volume, thus considerably reducing the cost of indoor air-conditioning and duct system.

Safe

The results of the tests

  • (1) Based on the static test of European Standard EN-14175-3:2003, the SGS leakage test gave the N.D. (not detected) result (minimum limit is 4 ppb).
  • (2) Based on the US Standard ASHRAE 110-1995, with the required value 0.05 ppm (AM), the SGS leakage test gave the N.D. (not detected) result (minimum limit 4 ppb).
  • (3) Meets the Excellent Classification of European standard defined by NERC.

Simple

Optional user-friendly touch-screen operational interface and VAV system make it more convenient and energy-efficient.
